OpenVidu Single Node COMMUNITY installation: Oracle Cloud Infrastructure#

Oracle Cloud Infrastructure

This section describes two ways to install OpenVidu Single Node on Oracle Cloud Infrastructure:

  • Web Console: Can be deployed without installing anything on your machine, but requires more manual steps and has some limitations. For example, recordings are stored on the machine itself rather than in OCI Object Storage.
  • Terraform: More powerful and fully automated, but requires the Terraform CLI to be installed on your machine.

Web Console#

This page explains how to create a Compute instance in Oracle Cloud Infrastructure (OCI), configure networking, and prepare it for an OpenVidu Single Node On-Premises installation. Installing, administering, and upgrading OpenVidu Single Node itself is covered in the On-Premises documentation.

Prerequisites#

  • An OCI account with permission to create Compute instances and networking resources.

1. Create the Compute instance#

  1. Log in to your Oracle Cloud Infrastructure account.

  2. Search for Instances, open it, and click "Create instance".

    OCI create instance

  3. Set a name for the instance (for example, openvidu-singlenode), or keep the default.

  4. Change the image to "Canonical Ubuntu 24.04".

    Instance select image

  5. Select the shape for your OpenVidu server. We recommend at least 1 OCPU and 4 GB of RAM for OpenVidu to run correctly. Then click "Next".

    Note

    ARM-based instances are also supported. OpenVidu supports ARM, and the Always Free-eligible tier includes an ARM instance at no cost.

  6. In the Security tab, keep the default options and click "Next".

  7. Create a new VNIC with a new virtual cloud network and a new public subnet.

    Network configuration

  8. Scroll down and download the private key for the instance so you can connect via SSH. Then click "Next".

    Download SSH key

  9. In the Storage tab, select "Specify a custom boot volume size" and set it to 100 GB instead of the default 50 GB. You can keep 50 GB, but OpenVidu may fail due to insufficient disk space. Then click "Next".

    Volume size configuration

  10. Review the configuration and click "Create".

2. Attach a public IP address to the instance#

  1. Open the instance details, navigate to the VNIC resource, and go to the "Networking" tab.

    VNIC location

  2. Open the "IP administration" tab. In the row of the existing IPv4 address, click the three-dots menu and select "Edit".

    Edit IPv4

  3. Select "Ephemeral public IP" and click "Update".

    Create Ephemeral Public IPv4

3. Port rules in the network security lists#

OpenVidu and WebRTC require specific inbound rules on both the instance network security (OCI NSG or subnet security list) and the instance firewall (configured later).

The minimum inbound ports to allow must be included in the security list rules.

  1. From the instance "Details" page, click the "Virtual cloud network" resource.

    VCN location

  2. Go to the "Security" tab and click the default security list.

    Security tab

  3. In the "Security Rules" tab, add the following Ingress rules.

Ingress Rules

Ingress rule 1
Ingress rule 2
Ingress rule 3
Ingress rule 4
Ingress rule 5
Ingress rule 6
Ingress rule 7
Ingress rule 8

4. SSH access, OpenVidu installation, and firewall rules#

Warning

Open the required ports in the OS firewall before installing OpenVidu to avoid connectivity issues.

  1. SSH into the instance:

    ssh -i private_key_downloaded.key ubuntu@PUBLIC_IP
sudo apt update && sudo apt upgrade -y

  2. Install and start the firewalld tool:

    sudo apt install firewalld -y
sudo systemctl enable firewalld
sudo systemctl start firewalld

  3. Clear the existing iptables rules, set the default input policy to ACCEPT, disable iptables persistence at startup, and restart the network service if required:

    sudo iptables -F
sudo iptables -P INPUT ACCEPT
sudo systemctl disable netfilter-persistent

  4. Add the required firewall rules:

    firewall-cmd --add-port=80/tcp
firewall-cmd --permanent --add-port=80/tcp

firewall-cmd --add-port=443/tcp
firewall-cmd --permanent --add-port=443/tcp

firewall-cmd --add-port=443/udp
firewall-cmd --permanent --add-port=443/udp

firewall-cmd --add-port=1935/tcp
firewall-cmd --permanent --add-port=1935/tcp

firewall-cmd --add-port=7881/tcp
firewall-cmd --permanent --add-port=7881/tcp

firewall-cmd --add-port=7885/udp
firewall-cmd --permanent --add-port=7885/udp

firewall-cmd --add-port=9000/tcp
firewall-cmd --permanent --add-port=9000/tcp

firewall-cmd --add-port=50000-60000/udp
firewall-cmd --permanent --add-port=50000-60000/udp

  5. Apply the rules and verify they are correctly configured:

    firewall-cmd --reload
firewall-cmd --runtime-to-permanent

firewall-cmd --list-all

  6. Follow the On-Premises install instructions to install OpenVidu on the instance.

    sslip.io rate limiting

    sslip.io is currently experiencing Let's Encrypt rate limiting issues, which may prevent SSL certificates from being issued. It is recommended to use your own domain name. Check this community thread for troubleshooting and updates.

5. Administration and upgrade#

  • For administration of this OpenVidu Single Node deployment, see the Administration section.
  • To upgrade OpenVidu, see the Upgrade section.

Terraform#

This section contains instructions for deploying a production-ready OpenVidu Single Node COMMUNITY deployment on Oracle Cloud Infrastructure. The deployed services are the same as in the On-Premises Single Node installation, but the process is fully automated through the Terraform CLI. OCI Object Storage is used to store recordings and other persistent data.

Prerequisites#

  • An Oracle Cloud Infrastructure account with the required permissions to create Compute instances, VCNs, and Object Storage buckets.
  • The Terraform CLI installed on your machine.
  • Git installed on your machine.

The deployment architecture is as follows:

OpenVidu Single Node Oracle Cloud Infrastructure Architecture
OpenVidu Single Node Oracle Cloud Infrastructure Architecture

Deployment details#

  1. Clone the OpenVidu repository containing the Terraform files:

    git clone https://github.com/OpenVidu/openvidu-oracle.git
git -C openvidu-oracle checkout 3.7.0
cd openvidu-oracle/community/singlenode

  2. Copy terraform.tfvars.example to terraform.tfvars, update the required parameters with your values, and adjust any optional defaults as needed.

    Information about parameters

    Mandatory Parameters

    Input Value Description
    tenancy_ocid OCI Tenancy OCID. Required for the Object Storage namespace.
    compartment_ocid OCI Compartment OCID where resources will be created.
    user_ocid OCI User OCID used to create Customer Secret Keys for S3-compatible access to Object Storage.
    stackName Stack name for the OpenVidu deployment.

    Optional Parameters

    Input Value Default Value Description
    region "eu-frankfurt-1" OCI region where resources will be created.
    availability_domain 1 Availability Domain number (1, 2, or 3) to use for resources.
    instanceType "VM.Standard.E4.Flex" OCI Compute shape for the OpenVidu instance.
    instanceOCPUs 4 Number of OCPUs for the instance (applies to Flex shapes only).
    instanceMemory 4 Memory in GB for the instance (applies to Flex shapes only).
    certificateType "letsencrypt" Certificate type for the OpenVidu deployment. Options:
    • selfsigned - Not recommended for production use. Intended for testing or development environments only. A FQDN is not required.
    • owncert - Suitable for production environments. Uses your own certificate. A FQDN is required.
    • letsencrypt - Suitable for production environments. Can be used with or without a FQDN (if no FQDN is provided, a random sslip.io domain will be used).

    Warning: sslip.io is currently experiencing Let's Encrypt rate limiting issues, which may prevent SSL certificates from being issued. It is recommended to use your own domain name. Check this community thread for troubleshooting and updates.
    publicIpAddress (none) A previously created Reserved Public IP address for the OpenVidu deployment. Leave blank to generate a new public IP.
    domainName (none) Domain name for the OpenVidu deployment. Optional — if not provided, a sslip.io domain will be used instead.
    ownPublicCertificate (none) If the certificate type is owncert, this parameter specifies the public certificate URL.
    ownPrivateCertificate (none) If the certificate type is owncert, this parameter specifies the private certificate URL.
    initialMeetAdminPassword (none) Initial password for the admin user in OpenVidu Meet. Alphanumeric characters only (A-Z, a-z, 0-9). If not provided, a random password will be generated.
    initialMeetApiKey (none) Initial API key for OpenVidu Meet. Alphanumeric characters only (A-Z, a-z, 0-9). If not provided, no API key will be set; one can be configured later from the Meet Console.
    bucketName (none) Name of the OCI Object Storage bucket for application data and recordings. If left empty, a bucket will be created with a default name.
    vault_ocid (none) OCI KMS Vault OCID for secrets management. If left empty, a new vault will be created.
    key_ocid (none) OCI KMS Key OCID for secrets management. If left empty, a new key will be created.
    additionalInstallFlags (none) Additional optional flags to pass to the OpenVidu installer (comma-separated, e.g., --flag1=value, --flag2).

  3. Deploy with Terraform using the following commands:

    terraform init
terraform apply

  4. Logs will appear in the terraform apply console output. Wait for it to finish and display Apply Complete!. Then go to OCI Object Storage and wait for the SSH key to appear in your configured bucket.

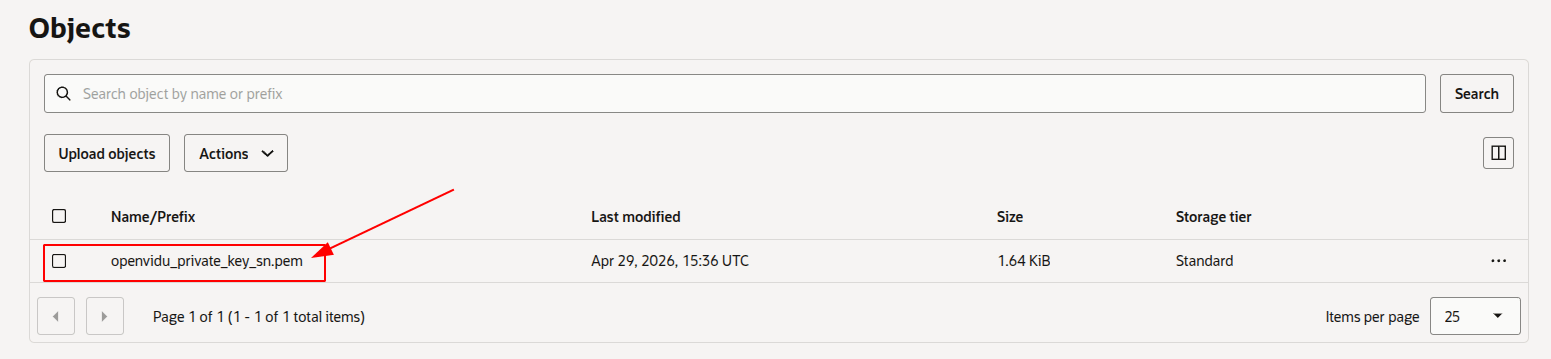

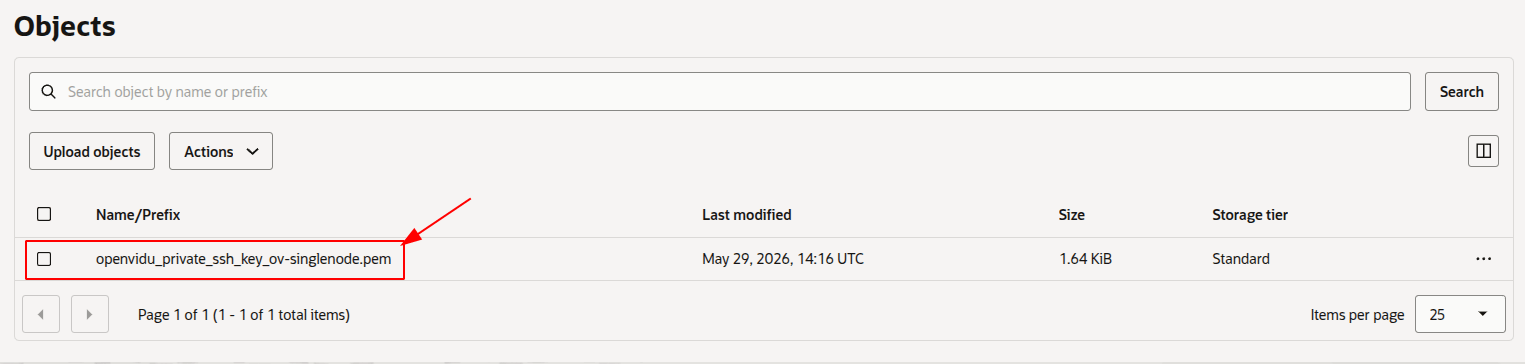

    Warning

    After downloading the SSH key, it is strongly recommended to DELETE IT from the bucket. This file is the private key used to access the instance — if exposed, unauthorized users could gain access.

    SSH Key in bucket

  5. Set the correct permissions on the SSH key so it can be used.

    chmod 600 <PATH_TO_THE_KEY>/openvidu_ssh_key_sn.pem

    $KeyPath = "<PATH_TO_THE_KEY>" &&
icacls $KeyPath /inheritance:r &&
icacls $KeyPath /grant:r "$($env:USERNAME):(R)"

Access OpenVidu#

To verify that your OpenVidu deployment is working correctly, check the credentials in the OCI Vault Secrets Manager.

  1. Navigate to the OCI Secrets Manager in the OCI Console.
  2. Click the secret you want to view.

  3. Scroll down to "Versions", click the "3 dots" menu next to the current version, and select "View secret contents".

    View Secret

    Warning

    Click "Show decoded Base64 digit" to see the actual value of the secret.

SSH into the instance by running the following command from the directory where your SSH key is located:

ssh -i openvidu_ssh_key_sn.pem ubuntu@PUBLIC_INSTANCE_IP

Then navigate to /opt/openvidu/config/ where you will find all credentials in the following files:

  • openvidu.env
  • meet.env

Open OPENVIDU_URL and you will see the OpenVidu Meet interface. Log in with MEET_INITIAL_ADMIN_PASSWORD to start using OpenVidu Meet.

Configure your application to use the deployment#

To configure your OpenVidu application, you will need your OCI credentials. You can retrieve them by following the steps in View OpenVidu credentials in the Web or View OpenVidu credentials in the instance.

Your authentication credentials and the URL to point your applications to are:

OpenVidu Meet:

  • OPENVIDU_URL: The URL used to access OpenVidu Meet, always https://yourdomain.example.io/.
  • MEET_INITIAL_ADMIN_USER: The user account for accessing the OpenVidu Meet Console. Always admin.
  • MEET_INITIAL_ADMIN_PASSWORD: The password for accessing the OpenVidu Meet Console.
  • MEET_INITIAL_API_KEY: The API key for using the OpenVidu Meet Embedded and OpenVidu Meet REST API.

Note

MEET_INITIAL_ADMIN_USER, MEET_INITIAL_ADMIN_PASSWORD, and MEET_INITIAL_API_KEY are initial settings only. Changing them here will not affect the deployment — they can only be modified from the Meet Console.

OpenVidu Platform:

  • LIVEKIT_URL: The URL used with LiveKit SDKs. This can be either wss://yourdomain.example.io/ or https://yourdomain.example.io/, depending on the client library you are using.
  • LIVEKIT_API_KEY: The API key for LiveKit SDKs.
  • LIVEKIT_API_SECRET: The API secret for LiveKit SDKs.

Troubleshooting initial Oracle Cloud Infrastructure deployment#

If something goes wrong during the initial Oracle Cloud Infrastructure deployment, you will not be able to reach the OPENVIDU_URL. This can happen due to a misconfiguration in the parameters, insufficient permissions, or a problem with OCI services. The steps below will help you troubleshoot the issue and identify the root cause:

  1. Check whether the instance is running. If it is not, review the output of the terraform apply command for any errors.

  2. If the instance is running, SSH into it and inspect the logs by running the following command:

    cat /var/log/cloud-init-output.log

    These logs contain detailed information about the Oracle Cloud Infrastructure deployment process.

  3. If everything appears to be in order, check the status and logs of the installed OpenVidu services.

Configuration and administration#

Once OPENVIDU_URL is reachable, the deployment is complete and working. See the Administration section to learn how to manage your deployment.
