OpenVidu Meet WebComponent Commands & Events Tutorial#

Source code

This tutorial extends the basic WebComponent tutorial to add advanced WebComponent functionality through commands and event handling. It demonstrates how to interact with the OpenVidu Meet WebComponent programmatically and respond to meeting events.

The application includes all the features from the basic WebComponent tutorial, plus:

  • WebComponent commands: Control the meeting programmatically (e.g., end meeting for moderators).
  • Event handling: Listen to and respond to WebComponent events (joined, left, closed).
  • Role-based UI: Display different interface elements based on user role (moderator/speaker).
  • Meeting header: Show room information and controls above the WebComponent.
  • Enhanced room management: In-memory room tracking with unique names per room.

Running this tutorial#

1. Run OpenVidu Meet#

You need Docker Desktop. You can install it on Windows , Mac or Linux .

Run this command in Docker Desktop's terminal:

docker compose -p openvidu-meet -f oci://openvidu/local-meet:3.4.0 up -y openvidu-meet-init

Info

For a detailed guide on how to run OpenVidu Meet locally, visit Try OpenVidu Meet locally .

2. Download the tutorial code#

git clone https://github.com/OpenVidu/openvidu-meet-tutorials.git -b 3.4.0

3. Run the application#

To run this application, you need Node.js installed on your device.

  1. Navigate into the application directory
cd openvidu-meet-tutorials/meet-webcomponent-commands-events
  1. Install dependencies
npm install
  1. Run the application
npm start

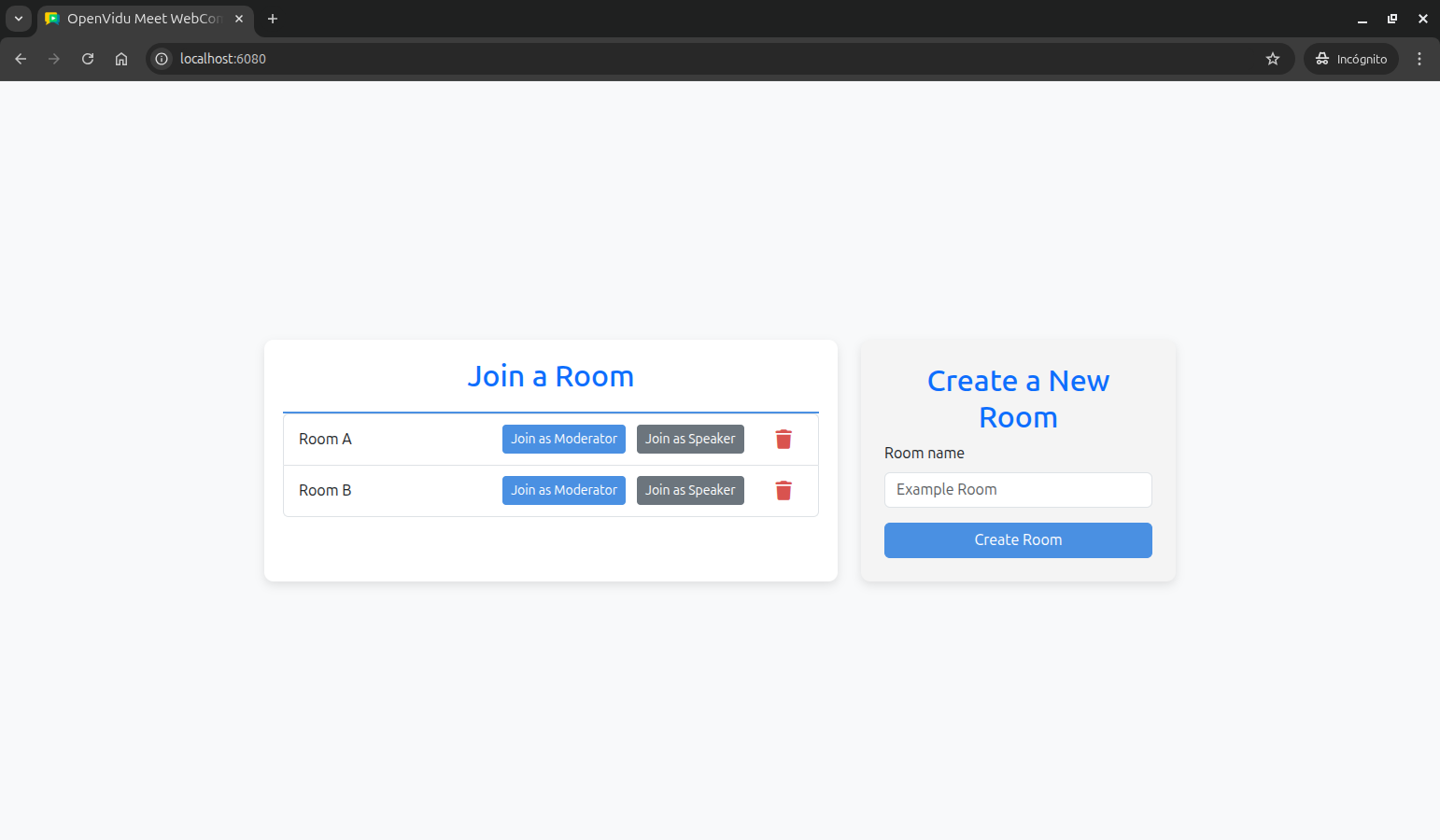

Once the server is up and running, you can test the application by visiting http://localhost:6080. You should see a screen like this:

Understanding the code#

This tutorial builds upon the basic WebComponent tutorial, adding advanced WebComponent interaction capabilities and enhanced room management. We'll focus on the key differences and new functionality.


Backend#

The backend is identical to previous tutorials. It provides the same three REST API endpoints:

  • POST /rooms: Create a new room with the given room name.
  • GET /rooms: Get the list of rooms.
  • DELETE /rooms/:roomId: Delete a room with the given room ID.

For detailed backend documentation, please refer to the Direct Link tutorial backend section.


Frontend modifications#

The frontend changes focus on enhanced room management, WebComponent event handling, and role-based UI features.

Enhanced room template#

The room template now passes additional parameters including role information:

app.js
function getRoomListItemTemplate(room) {
    return `
        <li class="list-group-item">
            <span>${room.roomName}</span>
            <div class="room-actions">
                <button
                    class="btn btn-primary btn-sm"
                    onclick="joinRoom(
                        '${room.roomName}',
                        '${room.moderatorUrl}',
                        'moderator'
                    );"
                >
                    Join as Moderator
                </button>
                <button
                    class="btn btn-secondary btn-sm"
                    onclick="joinRoom(
                        '${room.roomName}',
                        '${room.speakerUrl}',
                        'speaker'
                    );"
                >
                    Join as Speaker
                </button>
                <button
                    title="Delete room"
                    class="icon-button delete-button"
                    onclick="deleteRoom('${room.roomId}');"
                >
                    <i class="fa-solid fa-trash"></i>
                </button>
            </div>
        </li>
    `;
}

The template now provides the room name and user role to the joinRoom() function, enabling role-based functionality and proper room identification.


Advanced room joining with commands and events#

The joinRoom() function has been significantly enhanced to handle WebComponent events and commands:

app.js
function joinRoom(roomName, roomUrl, role) {
    console.log(`Joining room as ${role}`);

    // Hide the home screen and show the room screen
    const homeScreen = document.querySelector('#home');
    homeScreen.hidden = true; // (1)!
    const roomScreen = document.querySelector('#room');
    roomScreen.hidden = false; // (2)!

    // Hide the room header until the local participant joins
    const roomHeader = document.querySelector('#room-header');
    roomHeader.hidden = true; // (3)!

    // Inject the OpenVidu Meet component into the meeting container specifying the room URL
    const meetingContainer = document.querySelector('#meeting-container');
    meetingContainer.innerHTML = `
        <openvidu-meet
            room-url="${roomUrl}"
        >
        </openvidu-meet>
    `; // (4)!

    // Add event listeners for the OpenVidu Meet component
    const meet = document.querySelector('openvidu-meet');

    // Event listener for when the local participant joins the room
    meet.once('joined', () => {
        // (5)!
        console.log('Local participant joined the room');

        // Show the room header with the room name
        roomHeader.hidden = false;
        const roomNameHeader = document.querySelector('#room-name-header');
        roomNameHeader.textContent = roomName; // (6)!

        // Show end meeting button only for moderators
        const endMeetingButton = document.querySelector('#end-meeting-btn');
        if (role === 'moderator') {
            endMeetingButton.hidden = false; // (7)!
        } else {
            endMeetingButton.hidden = true;
        }

        // Event listener for ending the meeting
        if (role === 'moderator') {
            endMeetingButton.addEventListener('click', () => {
                console.log('Ending meeting');
                meet.endMeeting(); // (8)!
            });
        }
    });

    // Event listener for when the local participant leaves the room
    meet.once('left', (event) => {
        // (9)!
        console.log('Local participant left the room. Reason:', event.reason);

        // Hide the room header
        roomHeader.hidden = true;
    });

    // Event listener for when the OpenVidu Meet component is closed
    meet.once('closed', () => {
        // (10)!
        console.log('OpenVidu Meet component closed');

        // Hide the room screen and show the home screen
        roomScreen.hidden = true;
        homeScreen.hidden = false;
    });
}
  1. Hide the home screen.
  2. Show the room screen.
  3. Hide the room header until the local participant joins.
  4. Inject the OpenVidu Meet WebComponent into the meeting container with the specified room URL.
  5. Add an event listener for the joined event, which is triggered when the local participant joins the room.
  6. Set the room name in the header.
  7. Show the end meeting button if the user is a moderator.
  8. Call the endMeeting() method of the OpenVidu Meet WebComponent to end the meeting when the moderator clicks the End Meeting button.
  9. Add an event listener for the left event, which is triggered when the local participant leaves the room.
  10. Add an event listener for the closed event, which is triggered when the OpenVidu Meet component is closed.

The enhanced joinRoom() function now performs the following actions:

  1. Hides the home screen and shows the room screen.
  2. Hides the room header until the local participant joins.
  3. Injects the OpenVidu Meet WebComponent into the meeting container with the specified room URL.
  4. Configures event listeners for the OpenVidu Meet WebComponent to handle different events:

    • joined: This event is triggered when the local participant joins the room. It shows the room header with the room name and displays the End Meeting button if the user is a moderator. It also adds an event listener for the End Meeting button to call the endMeeting() method of the OpenVidu Meet WebComponent to end the meeting. This method disconnects all participants and ends the meeting for everyone.
    • left: This event is triggered when the local participant leaves the room. It hides the room header.
    • closed: This event is triggered when the OpenVidu Meet component is closed. It hides the room screen and shows the home screen.

Accessing this tutorial from other computers or phones#

To access this tutorial from other computers or phones, follow these steps:

  1. Ensure network connectivity: Make sure your device (computer or phone) is connected to the same network as the machine running OpenVidu Meet and this tutorial.

  2. Configure OpenVidu Meet for network access: Start OpenVidu Meet by following the instructions in the Accessing OpenVidu Meet from other computers or phones section.

  3. Update the OpenVidu Meet server URL: Modify the OV_MEET_SERVER_URL environment variable in your .env file to match the URL shown when OpenVidu Meet starts.

    # Example for IP address 192.168.1.100
    OV_MEET_SERVER_URL=https://192-168-1-100.openvidu-local.dev:9443

  4. Update the OpenVidu Meet WebComponent script URL: In the public/index.html file, update the <script> tag that includes the OpenVidu Meet WebComponent to use the same base URL as above.

    <script src="http://192-168-1-100.openvidu-local.dev:9443/v1/openvidu-meet.js"></script>

  5. Restart the tutorial to apply the changes:

    npm start

  6. Access the tutorial: Open your browser and navigate to https://192-168-1-100.openvidu-local.dev:6443 (replacing 192-168-1-100 with your actual private IP) on the computer where you started the tutorial or any device in the same network.

Connecting this tutorial to an OpenVidu Meet production deployment#

If you have a production deployment of OpenVidu Meet (installed in a server following deployment steps ), you can connect this tutorial to it by following these steps:

  1. Update the server URL: Modify the OV_MEET_SERVER_URL environment variable in the .env file to point to your OpenVidu Meet production deployment URL.

    # Example for a production deployment
    OV_MEET_SERVER_URL=https://your-openvidu-meet-domain.com

  2. Update the API key: Ensure the OV_MEET_API_KEY environment variable in the .env file matches the API key configured in your production deployment. See Generate an API Key section to learn how to obtain it.

    OV_MEET_API_KEY=your-production-api-key

  3. Update the OpenVidu Meet WebComponent script URL: In the public/index.html file, update the <script> tag that includes the OpenVidu Meet WebComponent to use the same base URL as above.

    <script src="https://your-openvidu-meet-domain.com/v1/openvidu-meet.js"></script>

  4. Restart the tutorial to apply the changes:

    npm start


Make this tutorial accessible from other computers or phones

By default, this tutorial runs on http://localhost:6080 and is only accessible from the local machine. If you want to access it from other computers or phones, you have the following options:

  • Use tunneling tools: Configure tools like VS Code port forwarding , ngrok , localtunnel , or similar services to expose this tutorial to the internet with a secure (HTTPS) public URL.
  • Deploy to a server: Upload this tutorial to a web server and configure it to be accessible with a secure (HTTPS) public URL. This can be done by updating the source code to manage SSL certificates or configuring a reverse proxy (e.g., Nginx, Apache) to serve it.
