OpenVidu Single Node PRO installation: DigitalOcean#

DigitalOcean

This section describes two ways to install OpenVidu Single Node PRO on DigitalOcean:

  • Web Console: Can be deployed without installing anything in your machine, but it requires more manual steps and has some limitations. For example, recordings are stored in the machine (instead of Digital Ocean Spaces Object Storage).
  • Terraform: More powerfull and automated, but it requires to install Terraform CLI on your machine.

Web Console#

This page explains how to create a Droplet (VM) in DigitalOcean, configure networking, and prepare it for OpenVidu Single Node PRO On Premises. Installing, administrating, and upgrading OpenVidu Single Node PRO itself is covered in the On-Premises documentation.

Prerequisites#

  • DigitalOcean account with permission to create Droplets and networking resources.

1. Create the Droplet#

  1. Log in to your DigitalOcean account.
  2. Search for Droplets, click it, and then click "Create Droplet".

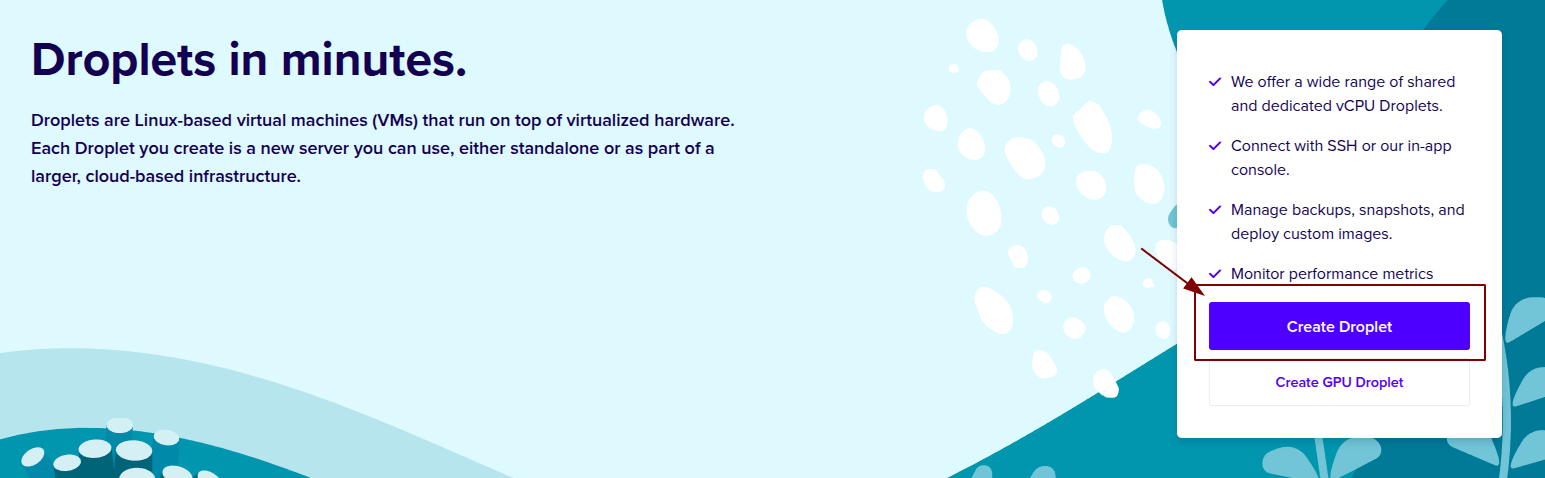

    Create Droplet
  3. Choose a region and then change the image to Ubuntu "24.04 (LTS) x64" if it is not selected yet.

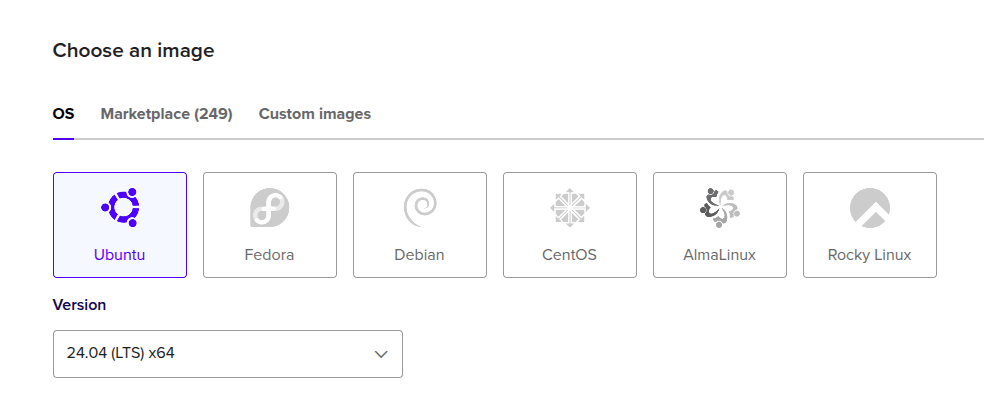

    OS Selection
  4. Select the size for your OpenVidu server. We recommend 4 CPUs or more and at least 4 GB of RAM for OpenVidu to run correctly.
  5. Scroll down to Authentication Method and choose the one you prefer. This will be used to connect to the instance via terminal. If you want to use an SSH key, follow the instructions shown when you click New SSH Key.

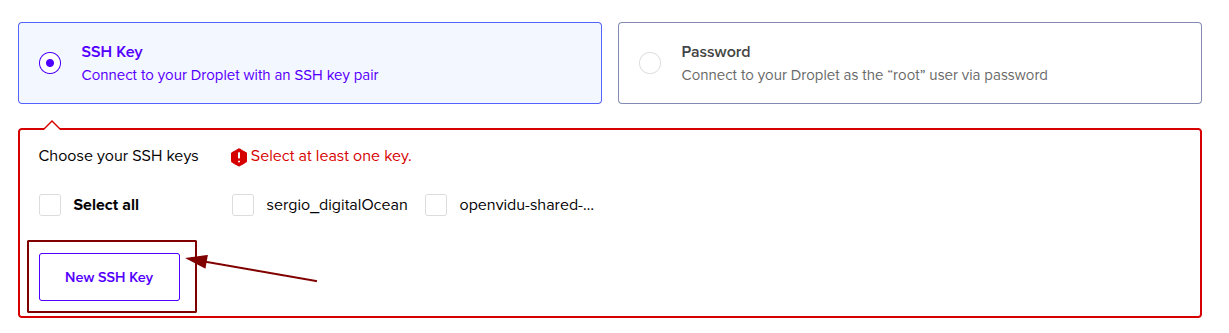

    Create New SSH Key
  6. Review the configuration and click "Create Droplet", you can change the hostname of the droplet if you want (for example, openvidu-singlenode-pro).

2. Port rules in the network security lists#

OpenVidu and WebRTC require specific inbound rules on the Firewall network security for it to work.

The minimum inbound ports to allow must be included in the Firewall rules.

  1. Click the droplet, then go to "Networking", go down and click on "Edit" in Firewall section.

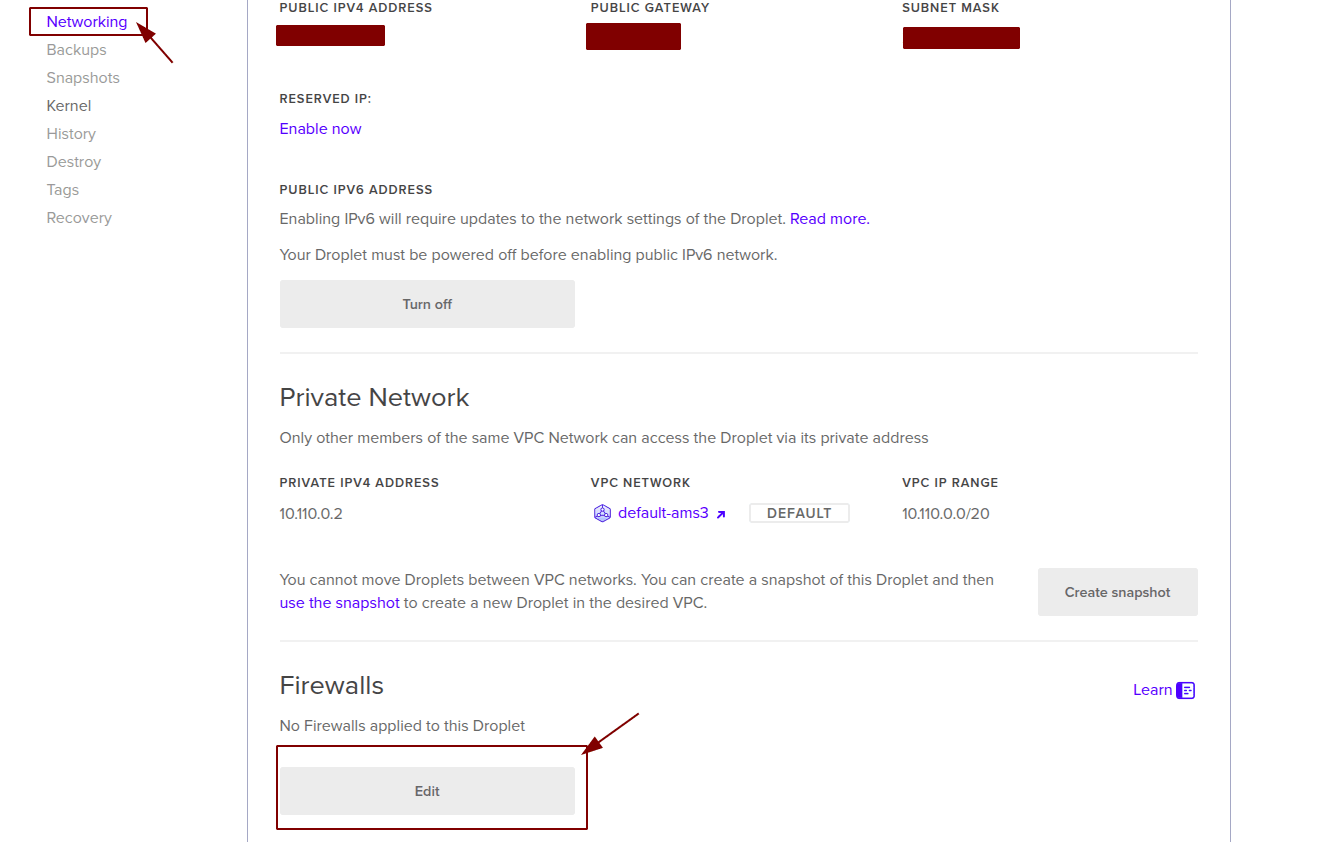

    Edit Firewall Rules

  2. Now click on "Create Firewall" and in Inbound Rules add the following rules.

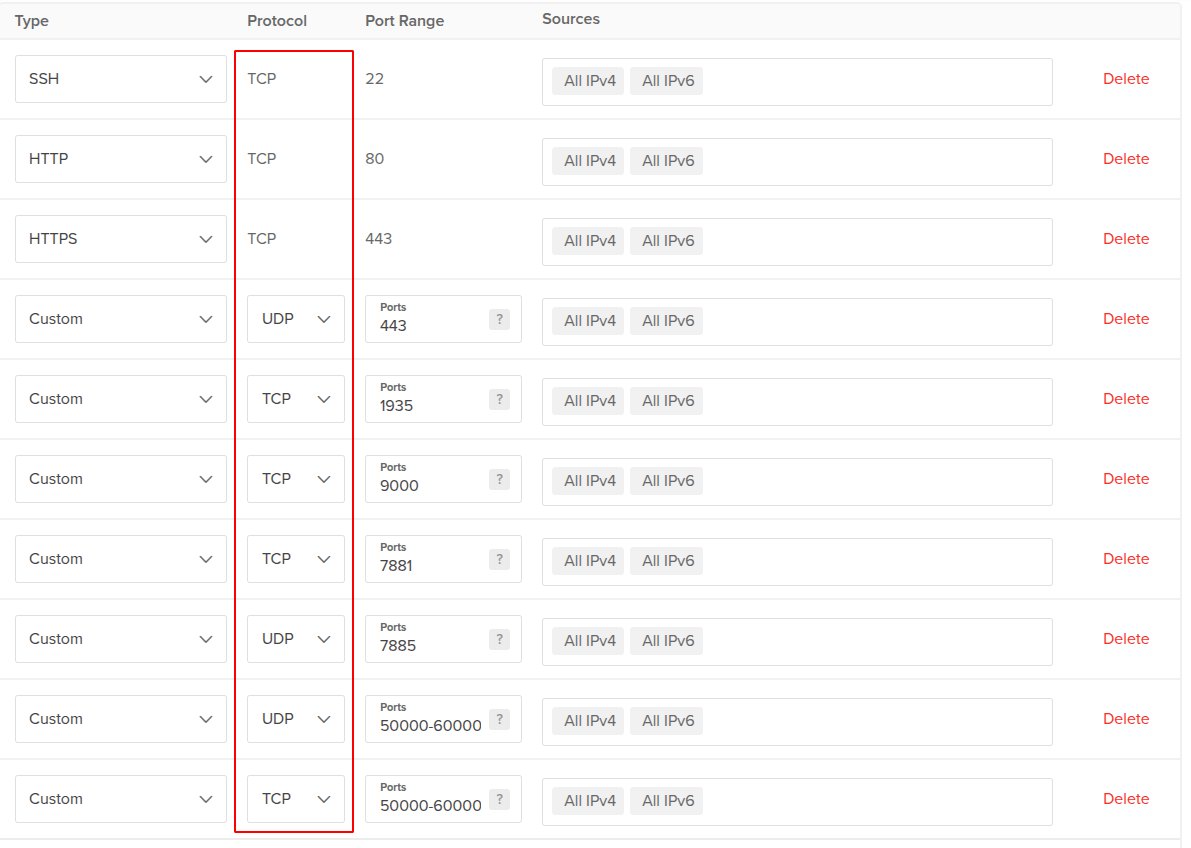

    Inbound rules

    Warning

    It is important that you make sure the protocol is the one that is shown in the image.

  3. Name the firewall, then scroll to the bottom and search for your Droplet by name. Select it to apply the firewall rules to it.

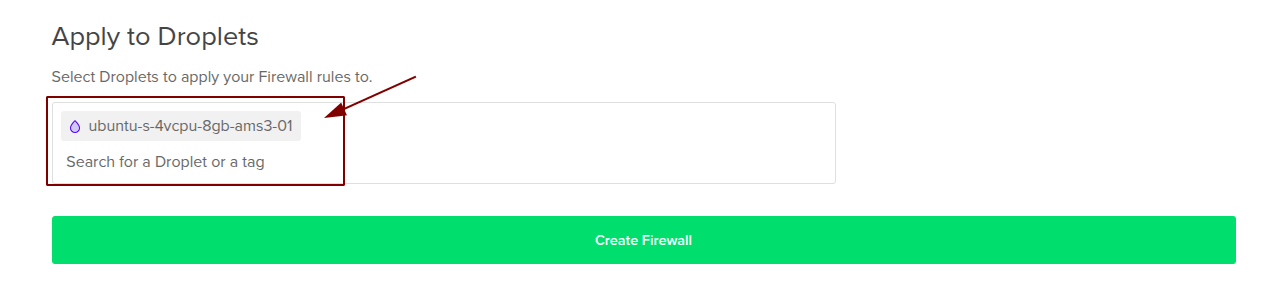

    Firewall apply to droplet

3. SSH access and OpenVidu installation#

  1. SSH into the instance:

    ssh -i private_key_downloaded.key root@PUBLIC_IP
sudo apt update && sudo apt upgrade -y

  2. Follow the On-Premises install instructions to install OpenVidu on the instance.

4. Administration and upgrade#

Terraform#

This section contains instructions for deploying a production-ready OpenVidu Single Node PRO deployment on DigitalOcean. The deployed services are the same as in the On Premises Single Node installation, but the process is automated through the Terraform CLI. Additionally, DigitalOcean Spaces (S3-compatible storage) is used to store recordings and other persistent data.

Prerequisites#

This is what the deployment architecture looks like:

OpenVidu Single Node PRO DigitalOcean Architecture
OpenVidu Single Node PRO DigitalOcean Architecture

Deployment details#

  1. Clone the OpenVidu repository with the terraform files:
    git clone https://github.com/OpenVidu/openvidu-digitalocean.git
cd openvidu-digitalocean/pro/singlenode

  2. Copy terraform.tfvars.example to terraform.tfvars, update the required parameters with your values, and optionally adjust defaults.

    Information about parameters

    Mandatory Parameters

    Input Value Description
    doToken DigitalOcean Personal Access Token for API authentication.
    stackName Stack name for OpenVidu deployment.
    openviduLicense OpenVidu License for PRO deployments. Go here for more information.

    Optional Parameters

    Input Value Default Value Description
    region "ams3" DigitalOcean region where resources will be created.
    instanceType "s-2vcpu-4gb" Specifies the DigitalOcean Droplet size for your OpenVidu instance.
    certificateType "letsencrypt" Certificate type for OpenVidu deployment. Options:
    • selfsigned - Not recommended for production use. Just for testing purposes or development environments. You don't need a FQDN to use this option.
    • owncert - Valid for production environments. Use your own certificate. You need a FQDN to use this option.
    • letsencrypt - Valid for production environments. Can be used with or without a FQDN (if no FQDN is provided, a random sslip.io domain will be used).

    Warning: sslip.io is currently experiencing Let's Encrypt rate limiting issues, which may prevent SSL certificates from being generated. It is recommended to use your own domain name. Check this community thread for troubleshooting and updates.
    domainName (none) Domain name for the OpenVidu Deployment. Not mandatory; if not provided, a sslip.io domain will be used instead.
    ownPublicCertificate (none) If certificate type is 'owncert', this parameter will be used to specify your public certificate in base64.
    ownPrivateCertificate (none) If certificate type is 'owncert', this parameter will be used to specify your private certificate in base64.
    initialMeetAdminPassword (none) Initial password for the 'admin' user in OpenVidu Meet. If not provided, a random password will be generated.
    initialMeetApiKey (none) Initial API key for OpenVidu Meet. If not provided, no API key will be set and the user can set it later from Meet Console.
    rtcEngine pion RTCEngine media engine to use. Values are pion or mediasoup.
    spaceName (none) Name of the DigitalOcean Space (S3-compatible bucket) to store application data and recordings. If empty, a bucket will be created with default name.
    spaceRegion "ams3" DigitalOcean Spaces region where the bucket will be created.
    spacesAccessId (none) Access key ID for DigitalOcean Spaces (S3-compatible). Required if spaceName is provided.
    spacesSecretKey (none) Secret access key for DigitalOcean Spaces (S3-compatible). Required if spaceName is provided.
    additionalInstallFlags (none) Additional optional flags to pass to the OpenVidu installer (comma-separated, e.g., '--flag1=value, --flag2'). Currently we only have one flag that is `--force-utc-timezone` to force UTC as the timezone for OpenVidu. By default, OpenVidu uses the timezone configured in the host machine where it is installed. Note that in general it is recommended to use UTC, and DigitalOcean Droplets already default to UTC, so this flag is not usually necessary.

    Warning

    In DigitalOcean, you need Space Access Keys to create a bucket. If you leave the spaceName variable empty, you must configure these keys with full access so a new bucket can be created. Here is how .

  3. Use the following commands to deploy with terraform.

    terraform init
terraform apply

  4. You will see logs appear in the terraform apply execution console. Wait for it to finish and display Apply Complete!. Now go to Space Object Storage and wait for the ssh key to appear in the bucket you have configured.

    Warning

    After downloading the SSH key, it is highly recommended to DELETE IT from the bucket. This file is the private key used to access the droplet. If exposed, unauthorized users could gain access to the instance.

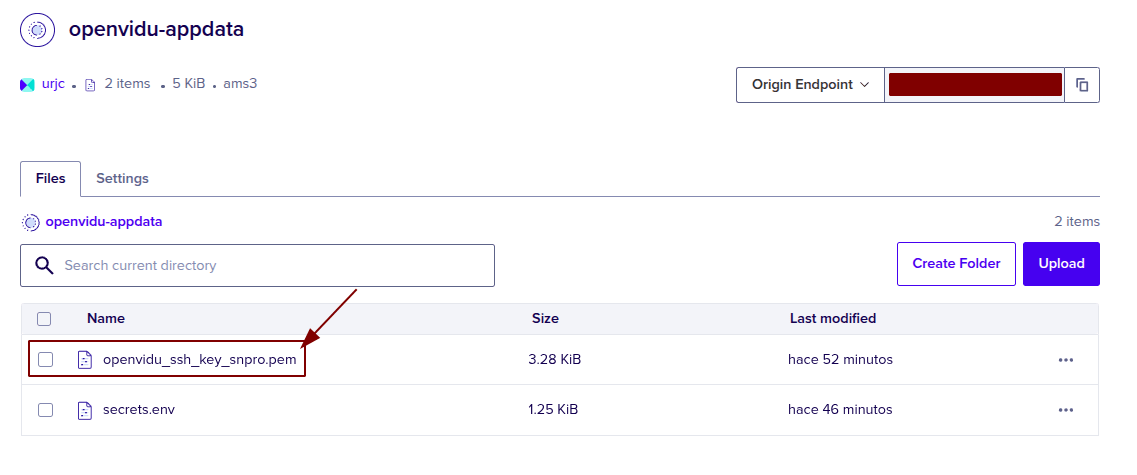

    SSH Key in Bucket

  5. Give the SSH Key the necessary permissions for it to work.

    Command in linux:

    chmod 600 <PATH_TO_THE_KEY>/openvidu_ssh_key_snpro.pem

    Command in powershell:

    $KeyPath = "<PATH_TO_THE_KEY>" &&
icacls $KeyPath /inheritance:r &&
icacls $KeyPath /grant:r "$($env:USERNAME):(R)"

Access OpenVidu#

To verify that your OpenVidu deployment works correctly wait for the secrets.env to appear in the bucket that you've configured and open it to view the credentials of OpenVidu.

  • Go to the Space Object Storage bucket that you've configurated and download the secrets.env file.

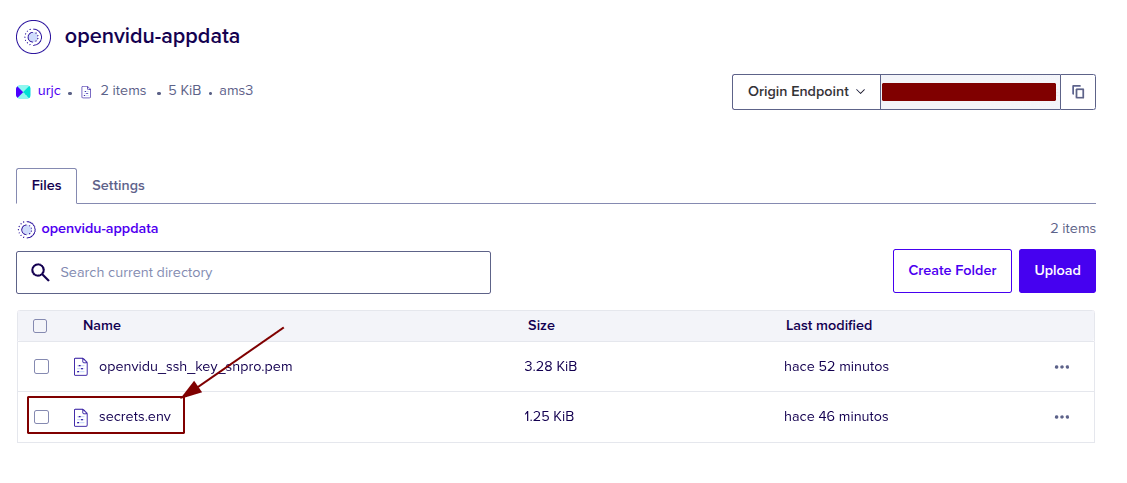

    Secrets.env in Bucket

SSH to the instance by running this command from the directory where your SSH key is located:

ssh -i openvidu_ssh_key_snpro.pem root@PUBLIC_DROPLET_IP

Then navigate to /opt/openvidu/ and you will find all credentials needed in the secrets.env.

Then open OPENVIDU_URL and you will see the OpenVidu Meet interface. Log in with MEET_INITIAL_ADMIN_PASSWORD and you will be able to enjoy the features of OpenVidu Meet.

Configure your application to use the deployment#

You may need your Digital Ocean credentials to configure your OpenVidu application. You can check these secrets following these steps (View OpenVidu credentials in the Web) or (View OpenVidu credentials in the instance).

Your authentication credentials and the URL to point your applications to are:

OpenVidu Meet:

  • OPENVIDU_URL: The URL to access OpenVidu Meet, which is always https://yourdomain.example.io/
  • MEET_INITIAL_ADMIN_USER: User to access OpenVidu Meet Console. It is always admin.
  • MEET_INITIAL_ADMIN_PASSWORD: Password to access OpenVidu Meet Console.
  • MEET_INITIAL_API_KEY: API key to use OpenVidu Meet Embedded and OpenVidu Meet REST API.

Note

The MEET_INITIAL_ADMIN_USER, MEET_INITIAL_ADMIN_PASSWORD, and MEET_INITIAL_API_KEY values are initial settings that changing them will not affect to the deployment. They can only be changed from the Meet Console.

OpenVidu Platform:

  • LIVEKIT_URL: The URL to use LiveKit SDKs, which can be wss://yourdomain.example.io/ or https://yourdomain.example.io/ depending on the client library you are using.
  • LIVEKIT_API_KEY: API Key for LiveKit SDKs.
  • LIVEKIT_API_SECRET: API Secret for LiveKit SDKs.

Troubleshooting initial DigitalOcean deployment creation#

If something goes wrong during the initial DigitalOcean deployment creation, you won't be able to reach the OPENVIDU_URL. It could be due to a misconfiguration in the parameters, a lack of permissions, or a problem with services. When this happens, the following steps can help you troubleshoot the issue and identify what went wrong:

  1. Check whether the instance or instances are running. If they are not, check whether the terraform apply command logged an error.

  2. If the instance or instances are running, SSH into the instance and check the logs by running this command:

    cat /var/log/cloud-init-output.log

    These logs will give you more information about the DigitalOcean deployment creation process.

  3. If everything seems fine, check the status and the logs of the installed OpenVidu services.

Configuration and administration#

When your OPENVIDU_URL is reachable, it means that everything has gone well. Now you can check the Administration section to learn how to manage your deployment.
