Advanced Recording Tutorial Azure#

Source code

This tutorial improves the basic recording tutorial by doing the following:

  • Complete recording metadata: Listen to webhook events and save all necessary metadata in a separate file.
  • Real time recording status notification: Implement a custom notification system to inform participants about the recording status by listening to webhook events and updating room metadata.
  • Recording deletion notification: Implement a custom notification system that alerts all participants of a recording's deletion by sending data messages.
  • Direct access to recording files: Add an additional method to allow access to recording files directly from the Azure Container by creating a presigned URL.

Running this tutorial#

1. Run OpenVidu Server#

  1. Download OpenVidu

    git clone https://github.com/OpenVidu/openvidu-local-deployment -b 3.2.0

  2. Configure the local deployment

    cd openvidu-local-deployment/community
    .\configure_lan_private_ip_windows.bat

    cd openvidu-local-deployment/community
    ./configure_lan_private_ip_macos.sh

    cd openvidu-local-deployment/community
    ./configure_lan_private_ip_linux.sh

  3. Deploy a Storage Account in Azure and add a container with the name that you want.

  4. Change in the egress.yaml the S3 configuration for the Azure configuration you will find commented and fill the configuration with your credentials

  5. Run OpenVidu

    docker compose up

  1. Deploy OpenVidu Single Node in Azure following these instructions to deploy in Azure.

    CPUs to be able to record

    Make sure you deploy with at least 4 CPUs in the Virtual Machine of Azure.

  2. Point the tutorial to your Azure deployment:

    • Modify file .env to update the LiveKit and Azure configuration to the values of your Azure deployment. You can get the values of LIVEKIT_URL, LIVEKIT_API_KEY and LIVEKIT_API_SECRET from the Check deployment outputs in Azure Key Vault. You can get the values of AZURE_ACCOUNT_NAME, AZURE_ACCOUNT_KEY and AZURE_CONTAINER_NAME from the openvidu.env file of your deployment (see Azure SSH Outputs).
    • Modify file app.js to update the value of LIVEKIT_URL to wss://your.azure.deployment.domain

Warning

If you are using self-signed certificate you will need to accept the certificate in the browser before using the tutorial.

Configure Webhooks

All application servers have an endpoint to receive webhooks from OpenVidu. For this reason, when using a production deployment you need to configure webhooks to point to your local application server in order to make it work. Check the Send Webhooks to a Local Application Server section for more information.

2. Download the tutorial code#

git clone https://github.com/OpenVidu/openvidu-livekit-tutorials.git -b 3.2.0

3. Run the application#

To run this application, you need Node.js installed on your device.

  1. Navigate into the application directory
cd openvidu-livekit-tutorials/advanced-features/openvidu-recording-advanced-node-azure
  1. Install dependencies
npm install
  1. Run the application
npm start

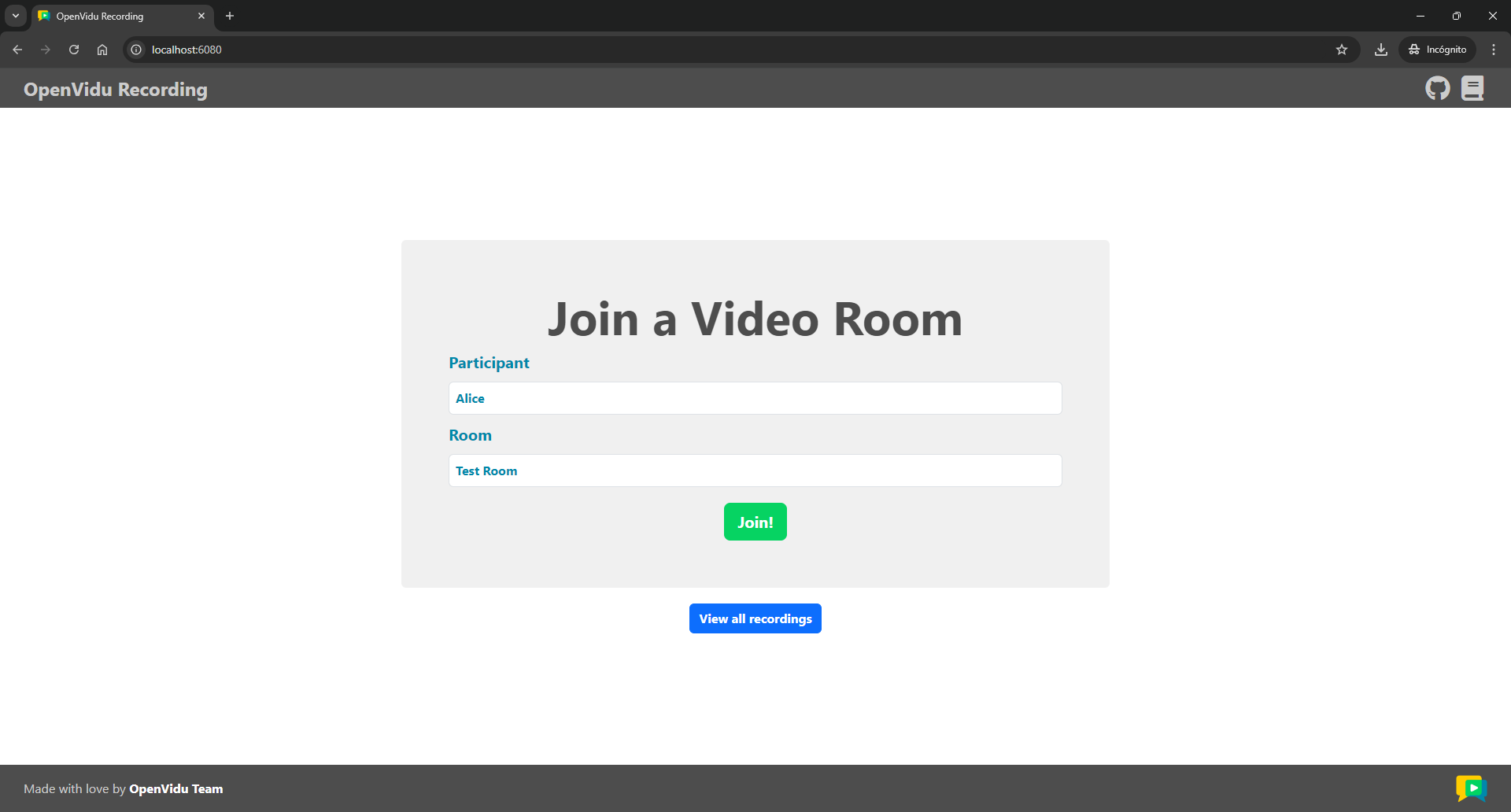

Once the server is up and running, you can test the application by visiting http://localhost:6080. You should see a screen like this:

Accessing your application from other devices in your local network

One advantage of running OpenVidu locally is that you can test your application with other devices in your local network very easily without worrying about SSL certificates.

Access your application client through https://xxx-yyy-zzz-www.openvidu-local.dev:6443, where xxx-yyy-zzz-www part of the domain is your LAN private IP address with dashes (-) instead of dots (.). For more information, see section Accessing your local deployment from other devices on your network.

Limitation: Playing recordings with the Azure strategy from other devices in your local network is not possible due to MinIO not being exposed. To play recordings from other devices, you need to change the environment variable RECORDING_PLAYBACK_STRATEGY to PROXY.

Enhancements#

Refactoring backend#

The backend has been refactored to prevent code duplication and improve readability. The main changes are:

  • Endpoints have been moved to the controllers folder, creating a controller for each set of related endpoints:

    • RoomController for the room creation endpoint.
    • RecordingController for the recording endpoints.
    • WebhookController for the webhook endpoint.
  • The index.js file now simply sets the route for each controller:

    index.js
    app.use("/token", roomController);
    app.use("/recordings", recordingController);
    app.use("/livekit/webhook", webhookController);

  • The configuration of environment variables and constants has been moved to the config.js file:

    config.js
    export const SERVER_PORT = process.env.SERVER_PORT || 6080;
    export const APP_NAME = "openvidu-recording-advanced-node";

    // LiveKit configuration
    export const LIVEKIT_URL = process.env.LIVEKIT_URL || "http://localhost:7880";
    export const LIVEKIT_API_KEY = process.env.LIVEKIT_API_KEY || "devkey";
    export const LIVEKIT_API_SECRET = process.env.LIVEKIT_API_SECRET || "secret";

    // Azure Blob Storage configuration
    export const AZURE_ACCOUNT_NAME = process.env.AZURE_ACCOUNT_NAME || "your_account_name";
    export const AZURE_ACCOUNT_KEY = process.env.AZURE_ACCOUNT_KEY || "your_account_key";
    export const AZURE_CONTAINER_NAME = process.env.AZURE_CONTAINER_NAME || "openvidu-appdata";
    export const AZURE_ENDPOINT = process.env.AZURE_ENDPOINT || `https://${AZURE_ACCOUNT_NAME}.blob.core.windows.net`;

    export const RECORDINGS_PATH = process.env.RECORDINGS_PATH ?? "recordings/";
    export const RECORDINGS_METADATA_PATH = ".metadata/";
    export const RECORDING_PLAYBACK_STRATEGY = process.env.RECORDING_PLAYBACK_STRATEGY || "Azure"; // PROXY or Azure
    export const RECORDING_FILE_PORTION_SIZE = 5 * 1024 * 1024; // 5MB

  • Operations of the EgressClient and functions related to recording management have been moved to the RecordingService class within the services folder.

After refactoring and implementing the improvements, the backend of the application has the following structure:

src
├── controllers
│   ├── recording.controller.js
│   ├── room.controller.js
│   └── webhook.controller.js
├── services
│   ├── recording.service.js
│   ├── room.service.js
│   └── azure.blobstorage.service.js
├── config.js
├── index.js

Where room.service.js defines the RoomService class, that contains the logic to manage rooms using the RoomServiceClient.


Adding room metadata#

In order to store the recording status in the room metadata, we have to create the room explicitly the first time a user joins it, setting the metadata field with an object that contains the recording status. This object also contains the app name, which is used to identify webhook events related to the application. This is done in the POST /token endpoint:

room.controller.js
roomController.post("/", async (req, res) => {
    const roomName = req.body.roomName;
    const participantName = req.body.participantName;

    if (!roomName || !participantName) {
        res.status(400).json({ errorMessage: "roomName and participantName are required" });
        return;
    }

    const at = new AccessToken(LIVEKIT_API_KEY, LIVEKIT_API_SECRET, {
        identity: participantName
    });
    at.addGrant({ room: roomName, roomJoin: true, roomRecord: true });
    const token = await at.toJwt();

    try {
        // Create room if it doesn't exist
        const exists = await roomService.exists(roomName); // (1)!

        if (!exists) {
            await roomService.createRoom(roomName); // (2)!
        }

        res.json({ token });
    } catch (error) {
        console.error("Error creating room.", error);
        res.status(500).json({ errorMessage: "Error creating room" });
    }
});
  1. Check if the room exists.
  2. Create the room if it doesn't exist.

After generating the access token with the required permissions, this endpoint does the following:

  1. Checks if the room exists by calling the exists method of the RoomService with the roomName as a parameter. This method returns a boolean indicating whether the room obtained from the getRoom method is not null. This other method lists all active rooms that match the roomName by calling the listRooms method of the RoomServiceClient with an array containing the roomName as a parameter, and returns the first element of the list if it exists:

    room.service.js
    async getRoom(roomName) {
        const rooms = await this.roomClient.listRooms([roomName]); // (1)!
        return rooms.length > 0 ? rooms[0] : null; // (2)!
    }

    async exists(roomName) {
        const room = await this.getRoom(roomName);
        return room !== null;
    }

    1. List all active rooms that match the roomName by calling the listRooms method of the RoomServiceClient with an array containing the roomName as a parameter.
    2. Return the first element of the list if it exists.
  2. Creates the room if it doesn't exist by calling the createRoom method of the RoomService with the roomName as a parameter. This method creates a room with the roomName and sets the metadata field with an object that contains the app name (defined in the config.js file) and the recording status initialized to STOPPED. To achieve this, the method calls the createRoom method of the RoomServiceClient with an object indicating the room name and metadata:

    room.service.js
    async createRoom(roomName) {
        const roomOptions = {
            name: roomName,
            metadata: JSON.stringify({
                createdBy: APP_NAME, // (1)!
                recordingStatus: "STOPPED" // (2)!
            })
        };
        return this.roomClient.createRoom(roomOptions); // (3)!
    }

    1. Set the app name.
    2. Set the recording status to STOPPED.
    3. Create the room with the roomOptions object by calling the createRoom method of the RoomServiceClient.

Handling webhook events#

In previous tutorials, we listened to all webhook events and printed them in the console without doing anything else. In this tutorial, we have to first check if the webhook is related to the application and then act accordingly depending on the event type. This is done in the POST /livekit/webhook endpoint:

webhook.controller.js
webhookController.post("/", async (req, res) => {
    try {
        const webhookEvent = await webhookReceiver.receive(req.body, req.get("Authorization"));
        const isWebhookRelatedToMe = await checkWebhookRelatedToMe(webhookEvent); // (1)!

        if (isWebhookRelatedToMe) {
            console.log(webhookEvent);
            const { event: eventType, egressInfo } = webhookEvent; // (2)!

            switch (eventType) {
                case "egress_started": // (3)!
                case "egress_updated":
                    await notifyRecordingStatusUpdate(egressInfo);
                    break;
                case "egress_ended": // (4)!
                    await handleEgressEnded(egressInfo);
                    break;
            }
        }
    } catch (error) {
        console.error("Error validating webhook event.", error);
    }

    res.status(200).send();
});
  1. Check if the webhook is related to the application.
  2. Destructure the event type and egress info from the webhook event.
  3. If the event type is egress_started or egress_updated, notify the recording status update.
  4. If the event type is egress_ended, handle the egress ended.

After receiving the webhook event, this endpoint does the following:

  1. Checks if the webhook is related to the application by calling the checkWebhookRelatedToMe function with the webhook event as a parameter. This function returns a boolean indicating whether the app name obtained from the metadata field of the room related to the webhook event is equal to the app name defined in the config.js file:

    webhook.controller.js
    const checkWebhookRelatedToMe = async (webhookEvent) => {
        const { room, egressInfo, ingressInfo } = webhookEvent; // (1)!
        let roomInfo = room;
        // (2)!
        if (!room || !room.metadata) {
            const roomName = room?.name ?? egressInfo?.roomName ?? ingressInfo?.roomName; // (3)!
            roomInfo = await roomService.getRoom(roomName); // (4)!

            if (!roomInfo) {
                return false;
            }
        }

        const metadata = roomInfo.metadata ? JSON.parse(roomInfo.metadata) : null; // (5)!
        return metadata?.createdBy === APP_NAME; // (6)!
    };

    1. Destructure the room, egress info, and ingress info from the webhook event.
    2. Check if the room and metadata fields exist.
    3. If the room or metadata fields don't exist, get the room name from the room, egress info, or ingress info.
    4. Get the room info by calling the getRoom method of the RoomService with the roomName as a parameter.
    5. Parse the metadata field of the room info.
    6. Return whether the app name is equal to the app name defined in the config.js file.
  2. Destructures the event type and egress info from the webhook event.

  3. If the event type is egress_started or egress_updated, calls the notifyRecordingStatusUpdate function with the egress info as a parameter. This function notifies all participants in the room related to the egress info about the recording status update. See the Notifying recording status update section for more information.

  4. If the event type is egress_ended, calls the handleEgressEnded function with the egress info as a parameter. This function saves the recording metadata in a separate file (see the Saving recording metadata section) and notifies all participants in the room related to the egress info that the recording has been stopped:

    webhook.controller.js
    const handleEgressEnded = async (egressInfo) => {
        try {
            await recordingService.saveRecordingMetadata(egressInfo); // (1)!
        } catch (error) {
            console.error("Error saving recording metadata.", error);
        }

        await notifyRecordingStatusUpdate(egressInfo); // (2)!
    };

    1. Save the recording metadata.
    2. Notify all participants in the room that the recording has been stopped.

Notifying recording status update#

When the recording status changes, all participants in the room have to be notified. This is done by updating the metadata field of the room with the new recording status, which will trigger the RoomEvent.RoomMetadataChanged event in the client side. This is implemented in the notifyRecordingStatusUpdate function:

webhook.controller.js
const notifyRecordingStatusUpdate = async (egressInfo) => {
    const roomName = egressInfo.roomName; // (1)!
    const recordingStatus = recordingService.getRecordingStatus(egressInfo.status); // (2)!

    try {
        await roomService.updateRoomMetadata(roomName, recordingStatus); // (3)!
    } catch (error) {
        console.error("Error updating room metadata.", error);
    }
};
  1. Get the room name from the egress info.
  2. Get the recording status from the egress info status.
  3. Update the room metadata with the new recording status.

After getting the room name from the egress info, this function does the following:

  1. Gets the recording status by calling the getRecordingStatus method of the RecordingService with the egress info status as a parameter. This method returns the recording status based on the egress info status:

    recording.service.js
    getRecordingStatus(egressStatus) {
        switch (egressStatus) {
            case EgressStatus.EGRESS_STARTING:
                return "STARTING";
            case EgressStatus.EGRESS_ACTIVE:
                return "STARTED";
            case EgressStatus.EGRESS_ENDING:
                return "STOPPING";
            case EgressStatus.EGRESS_COMPLETE:
                return "STOPPED";
            default:
                return "FAILED";
        }
    }


    We distinguish between the following recording statuses:

    • STARTING: The recording is starting.
    • STARTED: The recording is active.
    • STOPPING: The recording is stopping.
    • STOPPED: The recording has stopped.
    • FAILED: The recording has failed.
  2. Updates the room metadata with the new recording status by calling the updateRoomMetadata method of the RoomService with the roomName and recordingStatus as parameters. This method updates the metadata field of the room with an object that contains the app name and the new recording status by calling the updateRoomMetadata method of the RoomServiceClient with the roomName and a stringified object as parameters:

    room.service.js
    async updateRoomMetadata(roomName, recordingStatus) {
        const metadata = {
            createdBy: APP_NAME,
            recordingStatus // (1)!
        };
        return this.roomClient.updateRoomMetadata(roomName, JSON.stringify(metadata)); // (2)!
    }

    1. Update the recording status.
    2. Update the room metadata with the new metadata by calling the updateRoomMetadata method of the RoomServiceClient with the roomName and a stringified object as parameters.

Saving recording metadata#

When the recording ends, the metadata related to the recording has to be saved in a separate file. This is done in the saveRecordingMetadata function:

recording.service.js
async saveRecordingMetadata(egressInfo) {
    const recordingInfo = this.convertToRecordingInfo(egressInfo);
    const key = this.getMetadataKey(recordingInfo.name);
    await azureBlobService.uploadObject(key, recordingInfo);
}
  1. Convert the egress info to a recording info object.
  2. Get the metadata key from the recording info name.
  3. Upload the recording metadata to the Azure Container.

This method does the following:

  1. Converts the egress info to a recording info object by calling the convertToRecordingInfo method:

    recording.service.js
    convertToRecordingInfo(egressInfo) {
        const file = egressInfo.fileResults[0];
        return {
            id: egressInfo.egressId,
            name: file.filename.split("/").pop(),
            roomName: egressInfo.roomName,
            roomId: egressInfo.roomId,
            startedAt: Number(egressInfo.startedAt) / 1_000_000,
            duration: Number(file.duration) / 1_000_000_000,
            size: Number(file.size)
        };
    }


    Getting recording metadata

    In this tutorial, we can access detailed information about the recording directly from the metadata file stored in the Azure Container, without needing to make additional requests. This is made possible by saving all the necessary data retrieved from the egress info object. Compared to the basic recording tutorial, we are now storing additional details such as the recording name, duration and size.

  2. Gets the metadata key from the recordings path and the recordings metadata path, both defined in the config.js file, and the recording name replacing the .mp4 extension with .json:

    recording.service.js
    getMetadataKey(recordingName) {
        return RECORDINGS_PATH + RECORDINGS_METADATA_PATH + recordingName.replace(".mp4", ".json");
    }

  3. Uploads the recording metadata to the Azure Container by calling the uploadObject method of the AzureBlobService with the key and recordingInfo as parameters. This method uploads an object to the Azure Container with the key and the stringified object as parameters:

    azure.blobstorage.service.js
    async uploadObject(key, body) {
        const blockBlobClient = this.containerClient.getBlockBlobClient(key);
        const data = JSON.stringify(body);
        await blockBlobClient.upload(data, Buffer.byteLength(data));
    }


Notifying recording deletion#

When a recording is deleted, all participants in the room have to be notified. This is done by sending a data message to all participants in the room. To achieve this, the DELETE /recordings/:recordingName endpoint has been modified as follows:

recording.controller.js
recordingController.delete("/:recordingName", async (req, res) => {
    const { recordingName } = req.params;
    const exists = await recordingService.existsRecording(recordingName);

    if (!exists) {
        res.status(404).json({ errorMessage: "Recording not found" });
        return;
    }

    try {
        const { roomName } = await recordingService.getRecordingMetadata(recordingName); // (1)!
        await recordingService.deleteRecording(recordingName);

        // Notify to all participants that the recording was deleted
        const existsRoom = await roomService.exists(roomName); // (2)!

        if (existsRoom) {
            await roomService.sendDataToRoom(roomName, { recordingName }); // (3)!
        }

        res.json({ message: "Recording deleted" });
    } catch (error) {
        console.error("Error deleting recording.", error);
        res.status(500).json({ errorMessage: "Error deleting recording" });
    }
});
  1. Get the room name from the recording metadata.
  2. Check if the room exists.
  3. Send a data message to the room indicating that the recording was deleted.

Before deleting the recording, we get the room name from the recording metadata. After deleting the recording, we check if the room exists and, if it does, send a data message to the room indicating that the recording was deleted. This is done by calling the sendDataToRoom method of the RoomService with the roomName and an object containing the recordingName as parameters:

room.service.js
async sendDataToRoom(roomName, rawData) {
    const data = encoder.encode(JSON.stringify(rawData)); // (1)!
    const options = {
        topic: "RECORDING_DELETED", // (2)!
        destinationSids: [] // (3)!
    };

    try {
        await this.roomClient.sendData(roomName, data, DataPacket_Kind.RELIABLE, options); // (4)!
    } catch (error) {
        console.error("Error sending data to room", error);
    }
}
  1. Encodes the raw data.
  2. Sets the topic to RECORDING_DELETED.
  3. Sets the destination SIDs to an empty array (all participants in the room).
  4. Sends the data message to the room by calling the sendData method of the RoomServiceClient with the roomName, data, DataPacket_Kind.RELIABLE and options as parameters.

This method does the following:

  1. Encodes the raw data by calling the encode method of the TextEncoder with the stringified raw data as a parameter.
  2. Sets the topic of the data message to RECORDING_DELETED.
  3. Sets the destination SIDs to an empty array, which means that the message will be sent to all participants in the room.
  4. Sends the data message to the room by calling the sendData method of the RoomServiceClient with the roomName, data, DataPacket_Kind.RELIABLE and options as parameters. The DataPacket_Kind.RELIABLE parameter indicates that the message will be sent reliably.

Accessing recording files directly from the Azure Container#

In this tutorial, we have added an additional method to allow access to recording files directly from the Azure Container by creating a presigned URL. To accomplish this, we have created a new endpoint (GET /recordings/:recordingName/url) to get the recording URL depending on the playback strategy defined in the environment variable RECORDING_PLAYBACK_STRATEGY, whose value can be PROXY or AZURE:

recording.controller.js
recordingController.get("/:recordingName/url", async (req, res) => {
    const { recordingName } = req.params;
    const exists = await recordingService.existsRecording(recordingName); // (1)!

    if (!exists) {
        res.status(404).json({ errorMessage: "Recording not found" });
        return;
    }

    // If the recording playback strategy is "PROXY", return the endpoint URL
    if (RECORDING_PLAYBACK_STRATEGY === "PROXY") {
        res.json({ recordingUrl: `/recordings/${recordingName}` }); // (2)!
        return;
    }

    try {
        // If the recording playback strategy is "AZURE", return a signed URL to access the recording directly from Azure
        const recordingUrl = await recordingService.getRecordingUrl(recordingName); // (3)!
        res.json({ recordingUrl });
    } catch (error) {
        console.error("Error getting recording URL.", error);
        res.status(500).json({ errorMessage: "Error getting recording URL" });
    }
});
  1. Check if the recording exists.
  2. Return the GET /recordings/:recordingName endpoint URL if the playback strategy is PROXY.
  3. Create a presigned URL to access the recording directly from the Azure Container if the playback strategy is Azure.

This endpoint does the following:

  1. Extracts the recordingName parameter from the request.
  2. Checks if the recording exists. If it does not exist, it returns a 404 error.
  3. If the playback strategy is PROXY, it returns the GET /recordings/:recordingName endpoint URL to get the recording file from the backend.
  4. If the playback strategy is AZURE, it creates a presigned URL to access the recording directly from the Azure Container by calling the getRecordingUrl method of the RecordingService with the recordingName as a parameter. This method simply calls the getObjectUrl method of the AzureBlobService with the key of the recording as a parameter:

    azure.blobstorage.service.js
    async getObjectUrl(key) {
        if (!AZURE_ACCOUNT_NAME || !AZURE_ACCOUNT_KEY) {
            throw new Error("Credenciales de cuenta de Azure no están definidas para generar SAS");
        }
        const blobClient = this.containerClient.getBlobClient(key);
        const expiresOn = new Date(new Date().valueOf() + 24 * 60 * 60 * 1000); // 24 horas
        const sasPermissions = BlobSASPermissions.parse("r");
        const sasToken = generateBlobSASQueryParameters(
            {
                containerName: AZURE_CONTAINER_NAME,
                blobName: key,
                expiresOn,
                permissions: sasPermissions,
                protocol: SASProtocol.Https
            },
            new StorageSharedKeyCredential(AZURE_ACCOUNT_NAME, AZURE_ACCOUNT_KEY)
        ).toString();

        return `${blobClient.url}?${sasToken}`;
    }


    This method creates a presigned URL to access the object in the Azure Container by getting the url of the blob client and generating a SAS token, indicating the CONTAINER_NAME, key and the expiration time in seconds as parameters. In this case, the expiration time is set to 24 hours.

    Presigned URLs

    Presigned URLs are URLs that provide access to an Azure object for a limited time. This is useful when you want to share an object with someone for a limited time without providing them with your AWS credentials.

    Compared to the proxy strategy, accessing recording files directly from the Azure Container via presigned URLs is more efficient, as it reduces server load. However, it presents a security risk, as the URL, once generated, can be used by anyone until it expires.


Handling new room events in the client side#

In the client side, we have to handle the new room events related to the recording status and the recording deletion. This is done by listening to the RoomEvent.RoomMetadataChanged and RoomEvent.DataReceived events in the joinRoom method:

app.js
async function joinRoom() {
    // ...
    // When recording status changes...
    room.on(LivekitClient.RoomEvent.RoomMetadataChanged, async (metadata) => {
        const { recordingStatus } = JSON.parse(metadata);
        await updateRecordingInfo(recordingStatus);
    });

    // When a message is received...
    room.on(LivekitClient.RoomEvent.DataReceived, async (payload, _participant, _kind, topic) => {
        // If the message is a recording deletion notification, remove the recording from the list
        if (topic === "RECORDING_DELETED") {
            const { recordingName } = JSON.parse(new TextDecoder().decode(payload));
            deleteRecordingContainer(recordingName);
        }
    });
    // ...
}

When a new RoomEvent.RoomMetadataChanged event is received, we parse the metadata to get the recording status and update the recording info accordingly. The updateRecordingInfo function has been updated to handle the new recording statuses.

In addition to handling this event, we need to update the recording info in the UI the first time a user joins the room. Once the user has joined, we retrieve the current room metadata and update the UI accordingly. Recordings will be listed unless the recording status is STOPPED or FAILED, to prevent listing recordings twice:

app.js
async function joinRoom() {
    // ...
    // Update recording info
    const { recordingStatus } = JSON.parse(room.metadata);
    await updateRecordingInfo(recordingStatus);

    if (recordingStatus !== "STOPPED" && recordingStatus !== "FAILED") {
        const roomId = await room.getSid();
        await listRecordings(room.name, roomId);
    }
    // ...
}

When a new RoomEvent.DataReceived event is received, we check if the topic of the message is RECORDING_DELETED. If it is, we decode the payload using a TextDecoder and parse the message to get the recording name. Then, we remove the recording from the list by calling the deleteRecordingContainer function.
